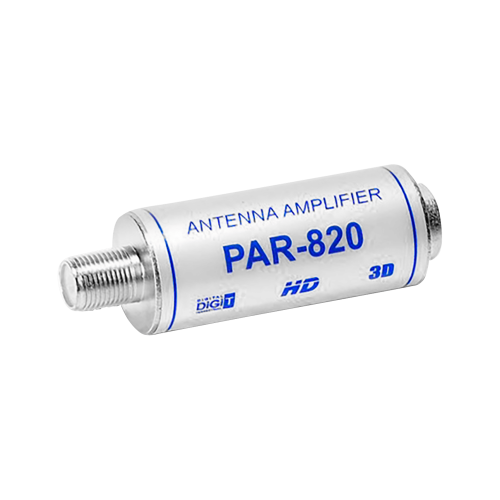

TV antenos stiprintuvas 5-24V 88-862MHz 19dB PAR-820
| Technical Data | Specification |
|---|---|
| Operating band | FM / VHF / UHF |
| Operating frequency range | 88–862 MHz |
| Gain | 19 dB ± 2 dB |
| Gain outside the operating band | Not specified |
| Maximum output signal level | 100 dBµV |
| Noise figure | 2.5 dB |
| Input/output impedance | 75 Ω / 75 Ω |
| Power supply | 5–24 V DC |
| Current consumption | 28 ± 3 mA |
| Input/output connector type | F male / F female |
| Product dimensions | Ø 20 × 62 mm |
| Net weight | 0.05 kg |
| Packaging | Blister |
