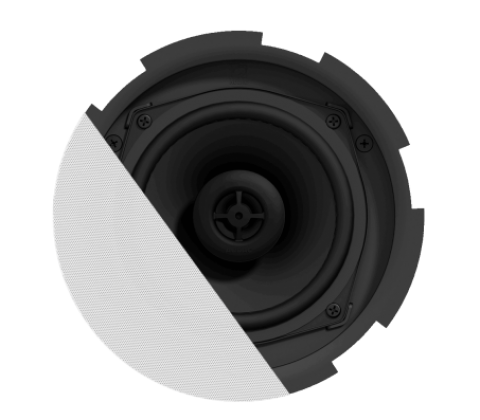

Montuojamas garsiakalbis 5.25" (15cm) 100V 60W 8Ω baltas (white) CIRA506 Audac

Montuojamas garsiakalbis 5.25" (15cm) 100V 60W 8Ω baltas (white) CIRA506 Audac

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.

The CIRA5 features a 5 ¼” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W, 3W, 1.5W and an 8 Ohm or 16 Ohm bypass connection.

System specifications:

Max. Power:  60 W
RMS Power:  30 W
Sound Pressure (Max. W/1m) @ 100 V:  102 dB
Sensitivity (1W/1m):  87 dB
Frequency response (± 3 dB):  60 Hz - 20 kHz
Speaker type:  2-way coaxial
Impedance:  8 Ω
Frequency range (-10 dB):  45 Hz - 20 kHz
Dispersion:  Conical 145°
Connectors:  Multi-tap Fast-con™ connections
LF driver:  5 ¼" Woofer
HF driver:  1”
Line Transformer Tappings:  6 W - 1667 Ω / 3 W - 3333 Ω / 1.5 W - 6667 Ω

Product Features:

Cut-out measurement:  170 mm (Ø)
Dimensions:  193 x 83 mm (Ø x D)
Weight:  1.10 kg
Operating temperature:  -20 °C ~ 60 °C
Construction:  ABS
Front finish:  TwistFix™ borderless finely perforated steel grill
Mounting:  QuickFit™ mounting system
Colour:  White (RAL9003)
Built-in depth:  75 mm
Dimensions:  193 mm (Ø)
