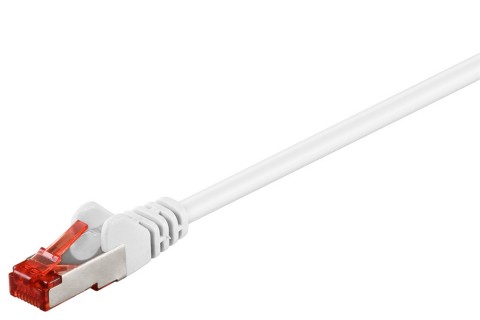

Laidas internetui ekranuotas S/FTP (PiMF) CAT6 0.5m baltas Goobay
Technical data
Connections
| Latch guard | both sides |
| Connection, shielding | Yes |
| Contact | EIA/TIA-568 B |
| kink protection | both sides |
| Connection 2, type | RJ45 connector (8P8C) |
| Connection type | RJ45 connector (8P8C) |
Cable
| specification | CAT 6 |
| Shielding class | S/FTP (PiMF) |
| Cable sheath diameter (approx.) | 5.9 mm |
| Inner conductor, material | CCA (copper-clad aluminum) |
| Cable type | Round cable |
| Cable length | 0.5 m |
| AWG | 27/7 (stranded) |
| Number of shields | 2 x |
| Type 1, shielding | Foil (aluminum) PiMF |
| Type 2, shielding | Woven (aluminum) umbrella |
| Bending radius > | 48 mm |
| Cable sheathing, material | PVC |
Signal transmission
| Maximum transfer rate | 1 Gbit/s |
| max. bandwidth | 250 MHz |
Generally
| Color | white |
| Markings | WEEE, CE |
| Special feature | Length specification on plug |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
| Packaging type | Cable Tag |
