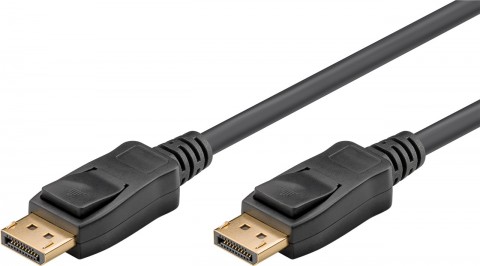

Laidas DisplayPort - DisplayPort 2m 8K (60Hz) 2.1v gold Goobay
Technical specifications
Connections
| Connection, contact material | gold-plated |
| Connection, housing material | ABS |
| Kink protection | yes |
Cable
| Cable length | 2 m |
| Type 1, shielding | foil (aluminium) |
| Type 2, shielding | foil (aluminium) |
| type | Standard |
| Cable type | round cable |
| Inner conductor material | CU (copper) |
| Cable sheath diameter (approx.) | 6.3 mm |
Signal transmission
| Supported video standards | 8K/144Hz (7680x4320) DSC (4:2:2), 8K/120Hz (7680x4320) DSC, 8K/30Hz (7680x4320) Full UHD, 4K/240Hz (3840x2160) DSC (4:2:0), 4K/144Hz (3840x2160) UHD |
| Transmission modes | UHBR10 |
| max. transmission rate | 40 Gbit/s |
| Max. resolution | 8K/120Hz (7680x4320) DSC |
General
| Packaging type | Cable Tag |
| Goobay Version | DP 2.0/2.1 |
| Color | black |
| Markings | CE, WEEE |
